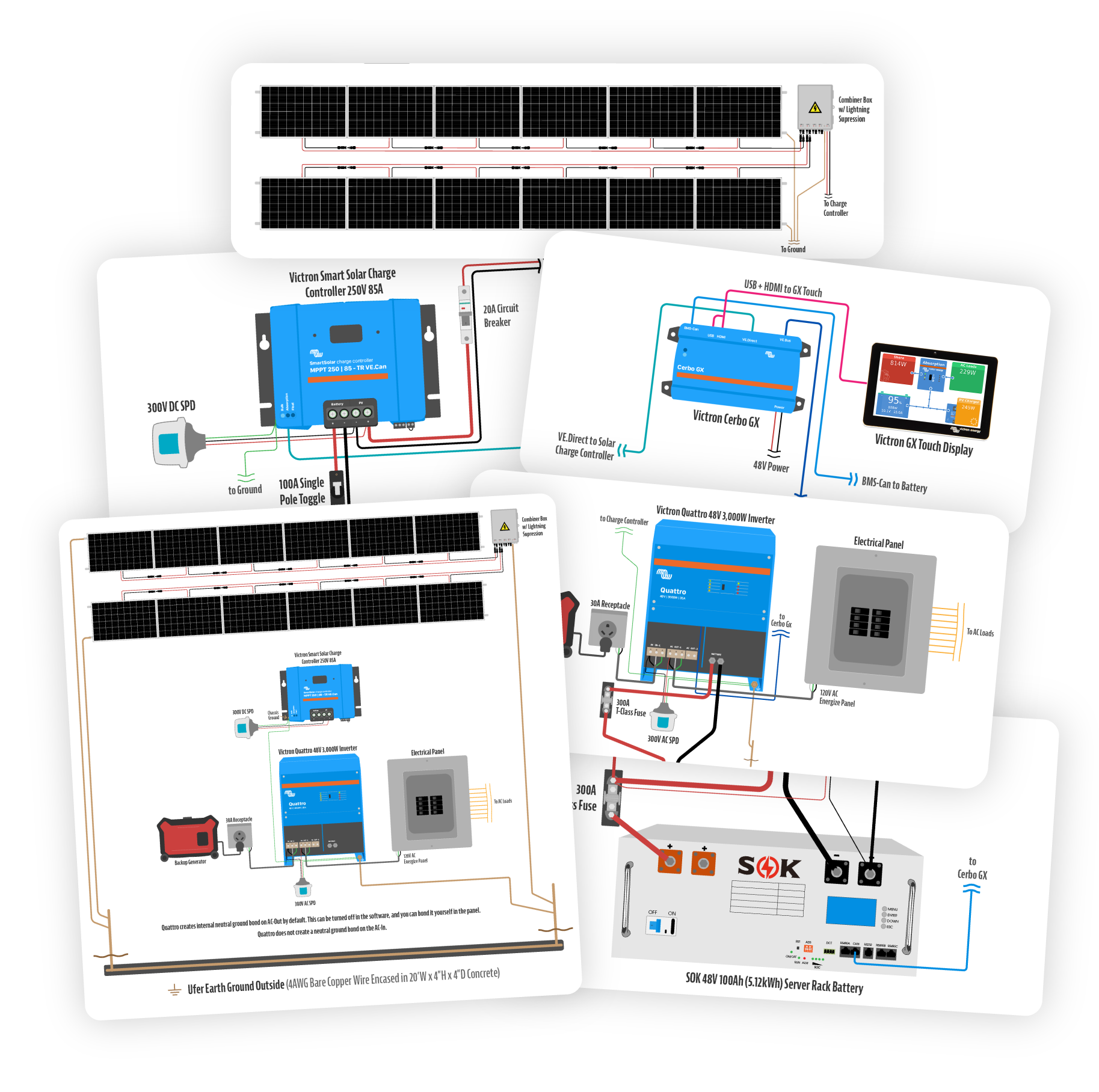

This schematic visual representation will show you exactly how everything in our Victron based 3kW, 5kWH, 120V off-grid battery and solar system connects together. It's the perfect size for a small building like a shipping container.
Use this as a guide to DIY your assemble your own medium sized off-grid solar system simply and safely.
We know looking at that beastly diagram above can be overwhelming. As part of our full installation article we also created individual wiring schematics for each major component, and have included them as hi-res PDF illustrations as well!
We believe these wiring diagrams will get you well on your way to building your own off-grid solar system, saving thousands of dollars in the process. Of course, if you don't find it useful we're happy to give you your money back.
